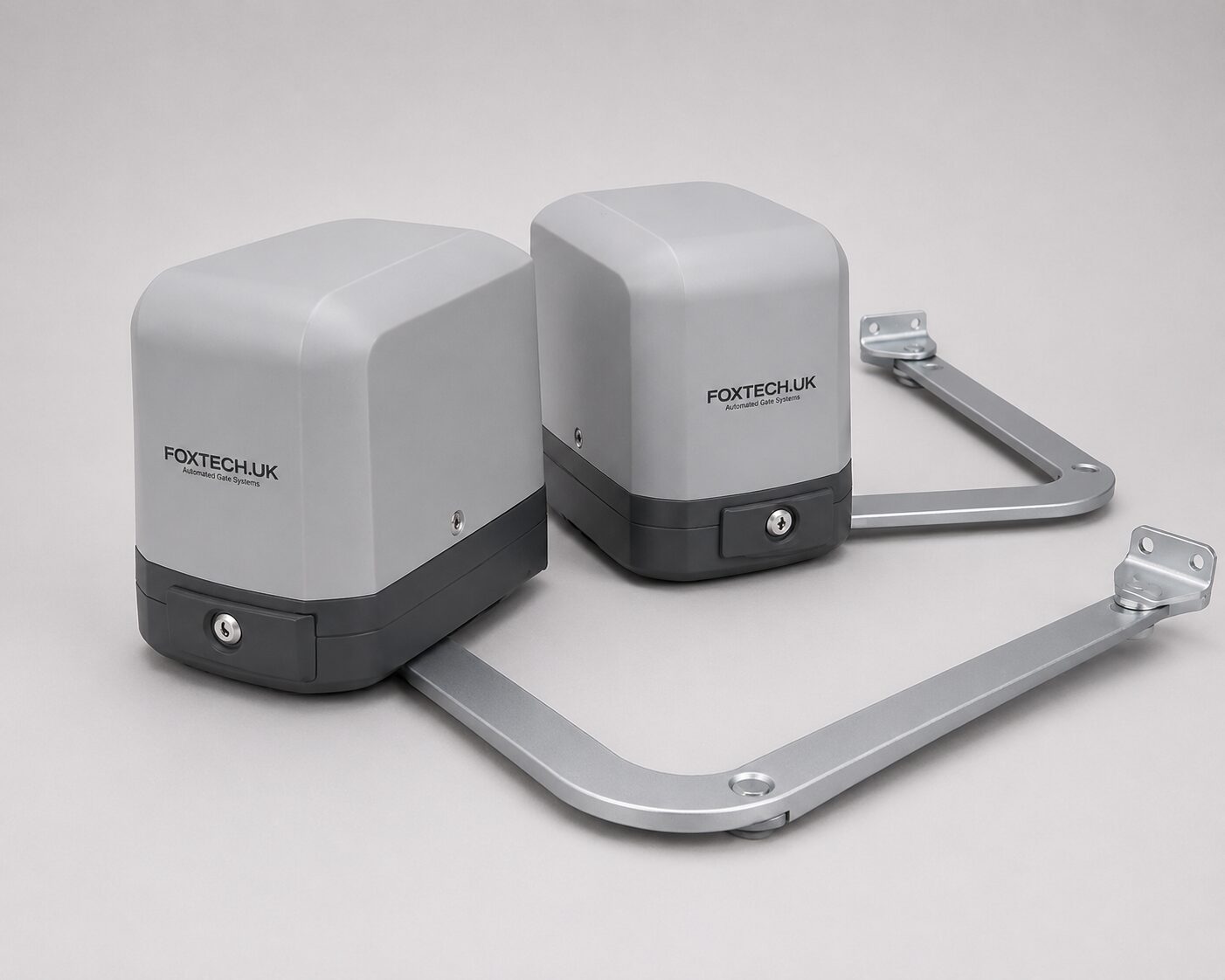

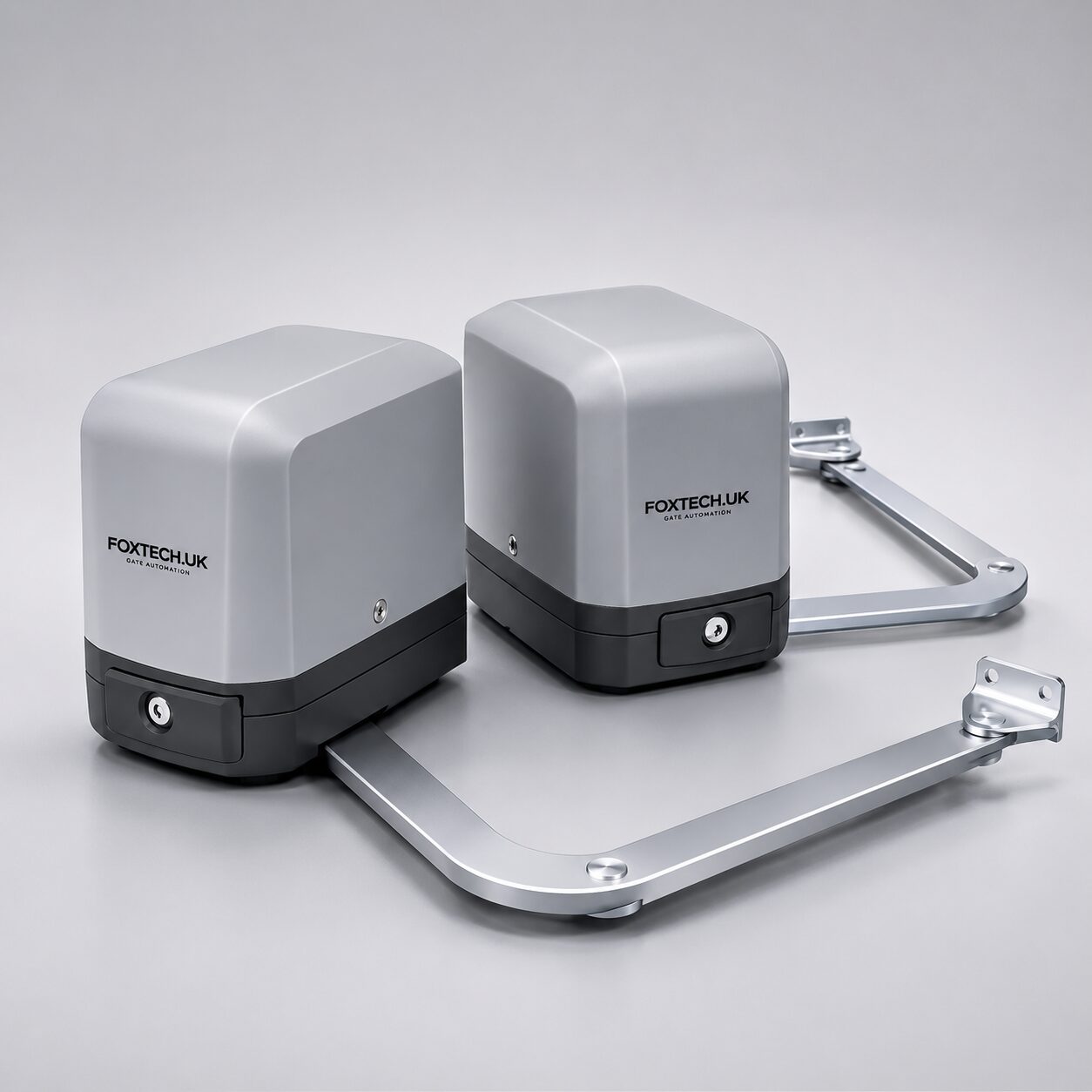

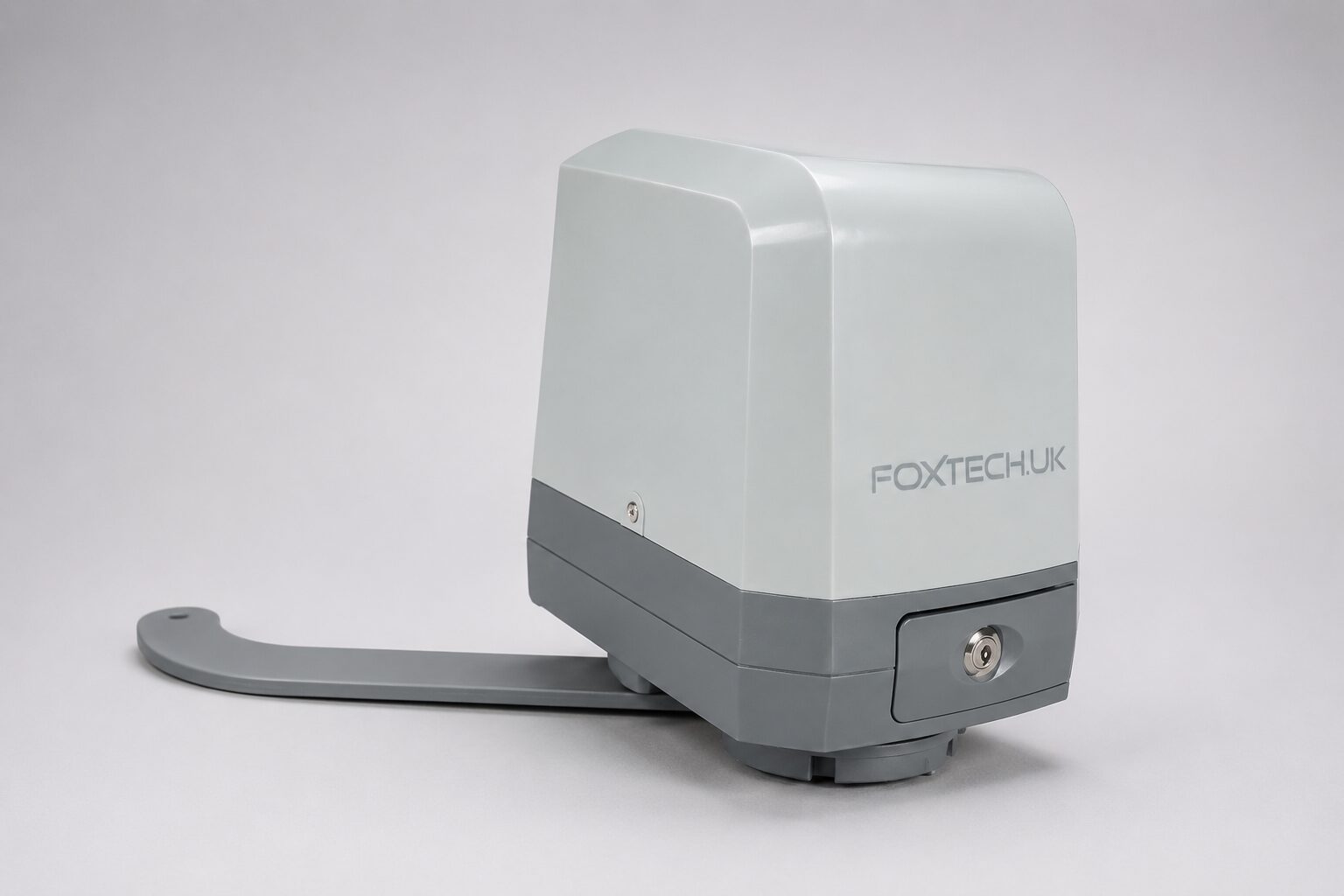

Articulated swing gates up to 2.5 m / 250 kg
Perfect for gates installed on large posts
premium-quality materials for exceptional durability

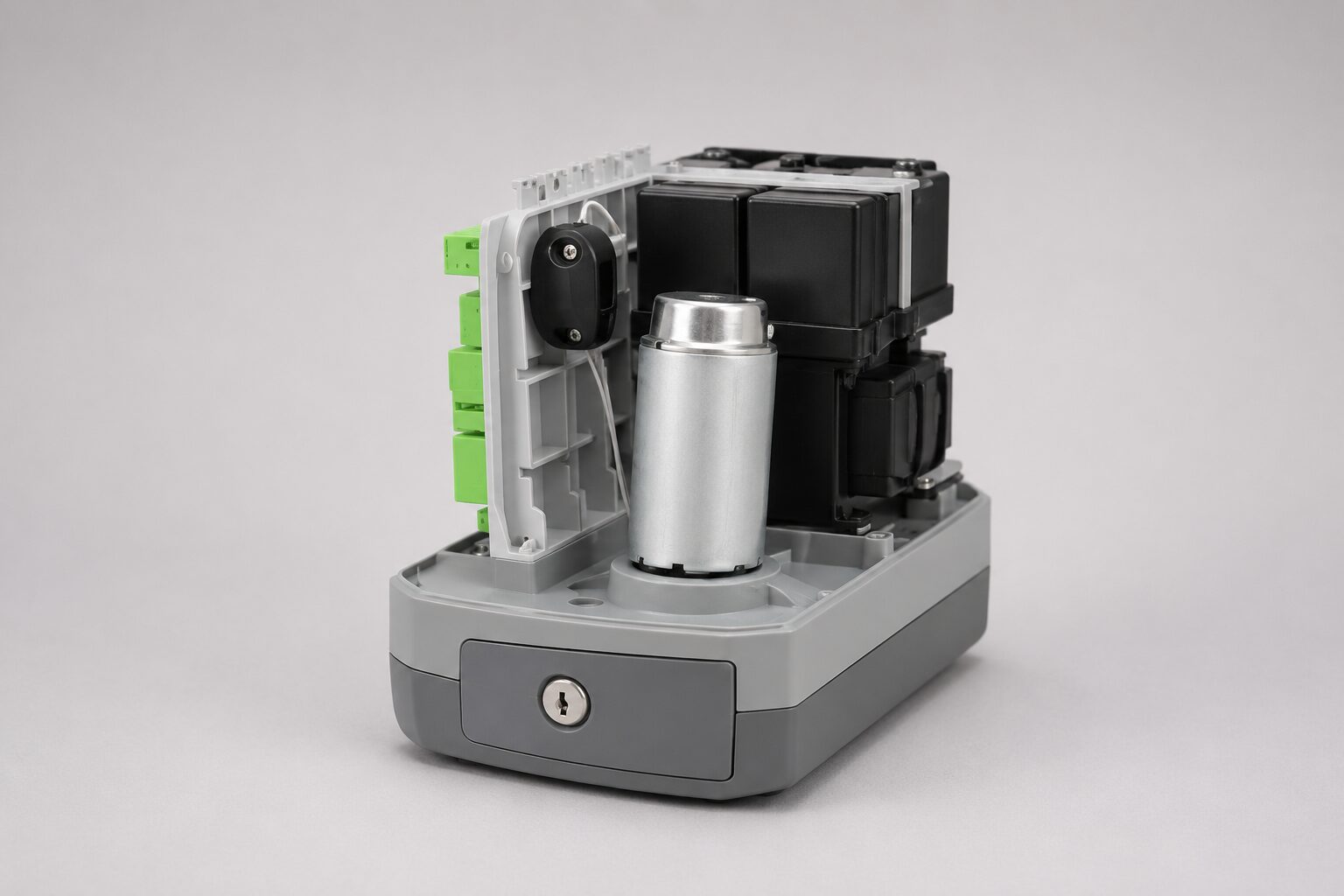

Integrated control unit in a sealed plastic enclosure to guard against dust and insects
Accurate limit switch adjustment for precise gate positioning
Easy-to-use manual release handle for quick operation
Optional backup battery keeps your gate functional during power outages
Articulated swing gates up to 2.5 m / 250 kg
Perfect for gates installed on large posts
premium-quality materials for exceptional durability
Integrated control unit in a sealed plastic enclosure to guard against dust and insects
Accurate limit switch adjustment for precise gate positioning
Easy-to-use manual release handle for quick operation
Optional backup battery keeps your gate functional during power outages

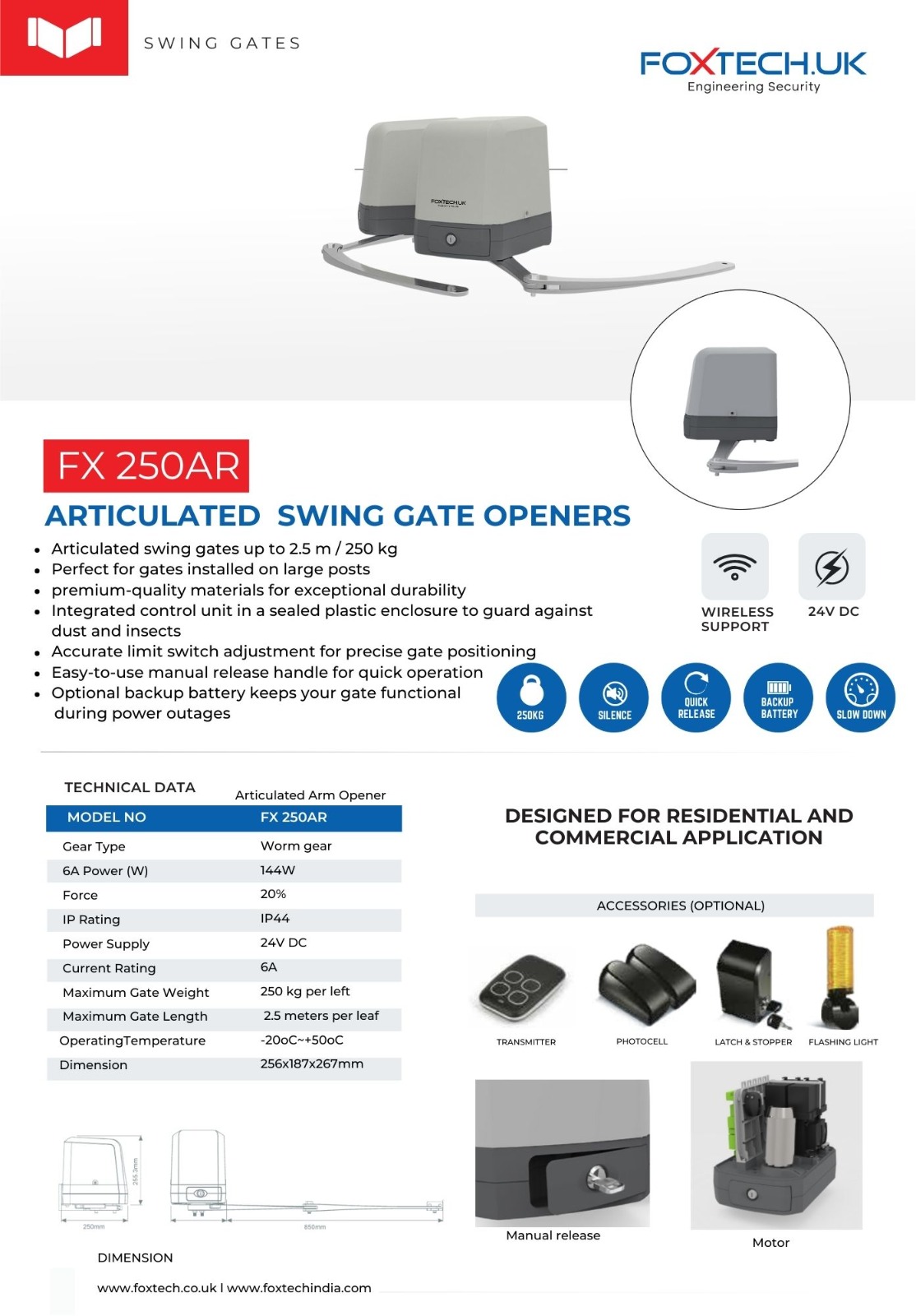

| Model no | FX 250AR |
|---|---|
| Gear Type | Worm gear |
| 6A Power (W) | 144W |
| Force | 20% |
| IP Rating | IP44 |
| Power Supply | 24V DC |
| Current Rating | 6A |
| Maximum Gate Weight | 250 kg per leaf |
| Maximum Gate Length | 2.5 meters per leaf |
| Operating Temperature | -20°C ~ +50°C |
| Dimension | 256×187×267 mm |
<a class=”download-btn” href=”your-file.pdf” download=””>
Download User Manual
</a>
