Description
SLIDING GATE OPENERS
- FX 500: maximum gate weight: 500kg/6m.
- 24V DC electro-mechanical gear motors for residential use.
- Worm gear provides durability and silence in motor operation.
- Slowdown during the ends of opening and closing phases.
-80%

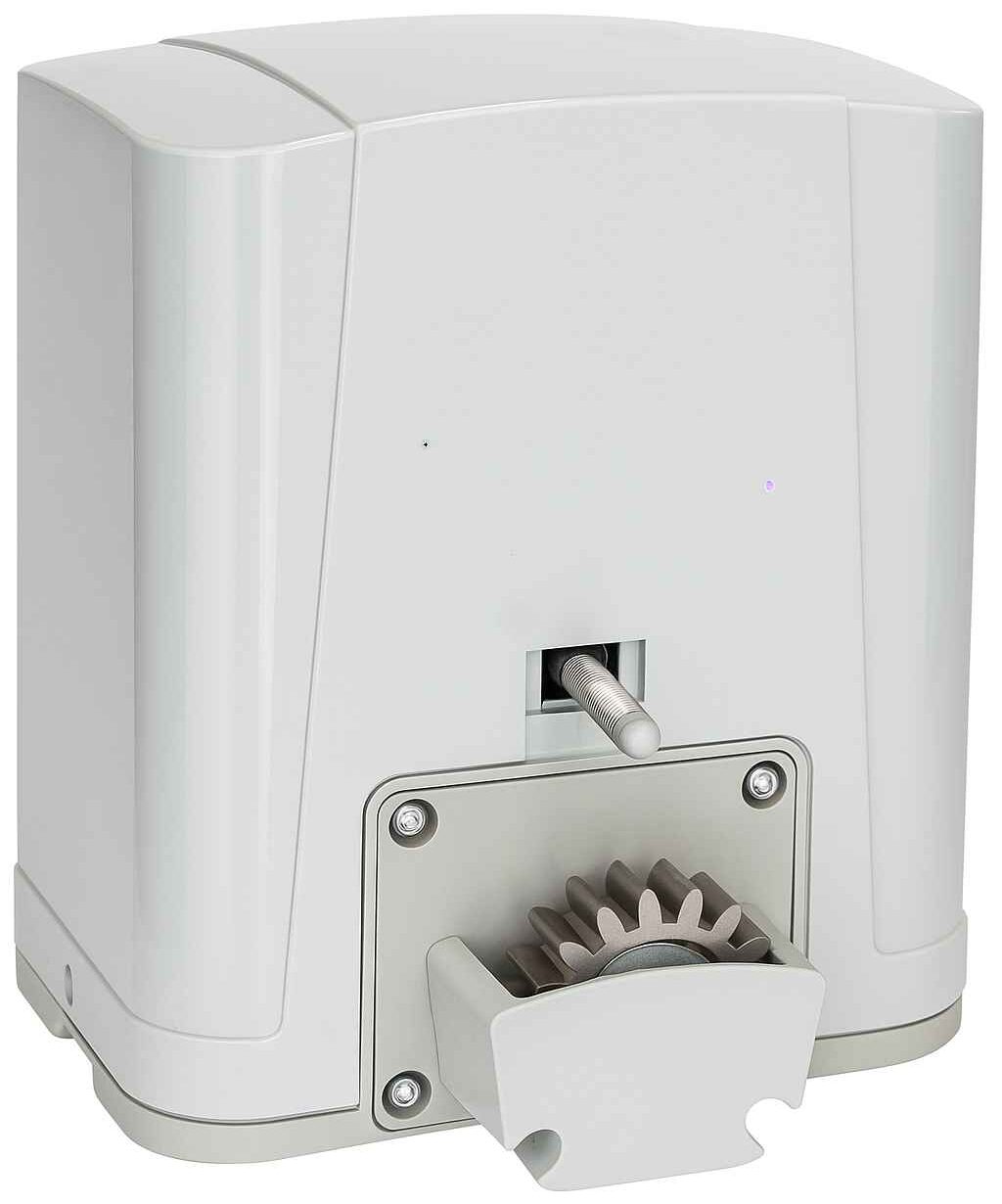

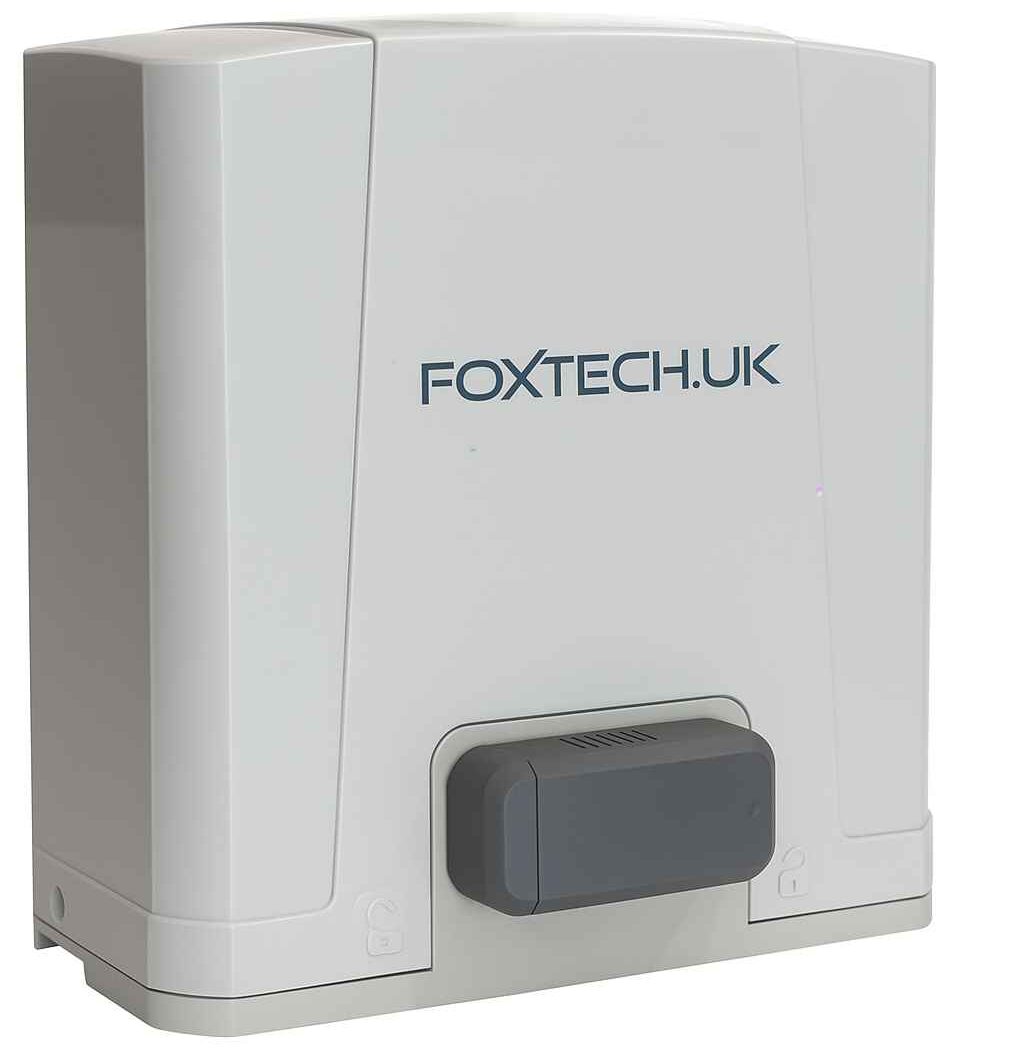

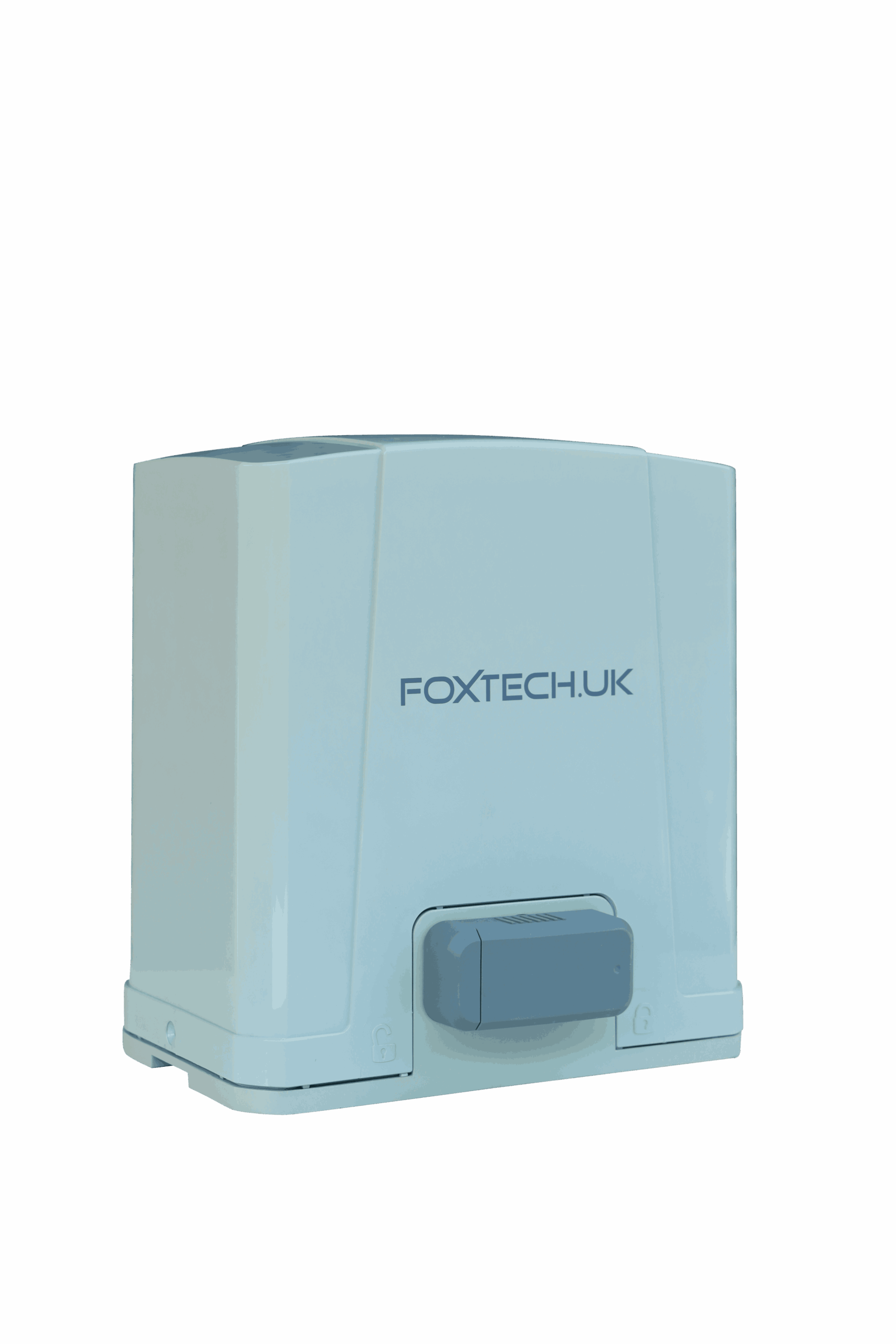

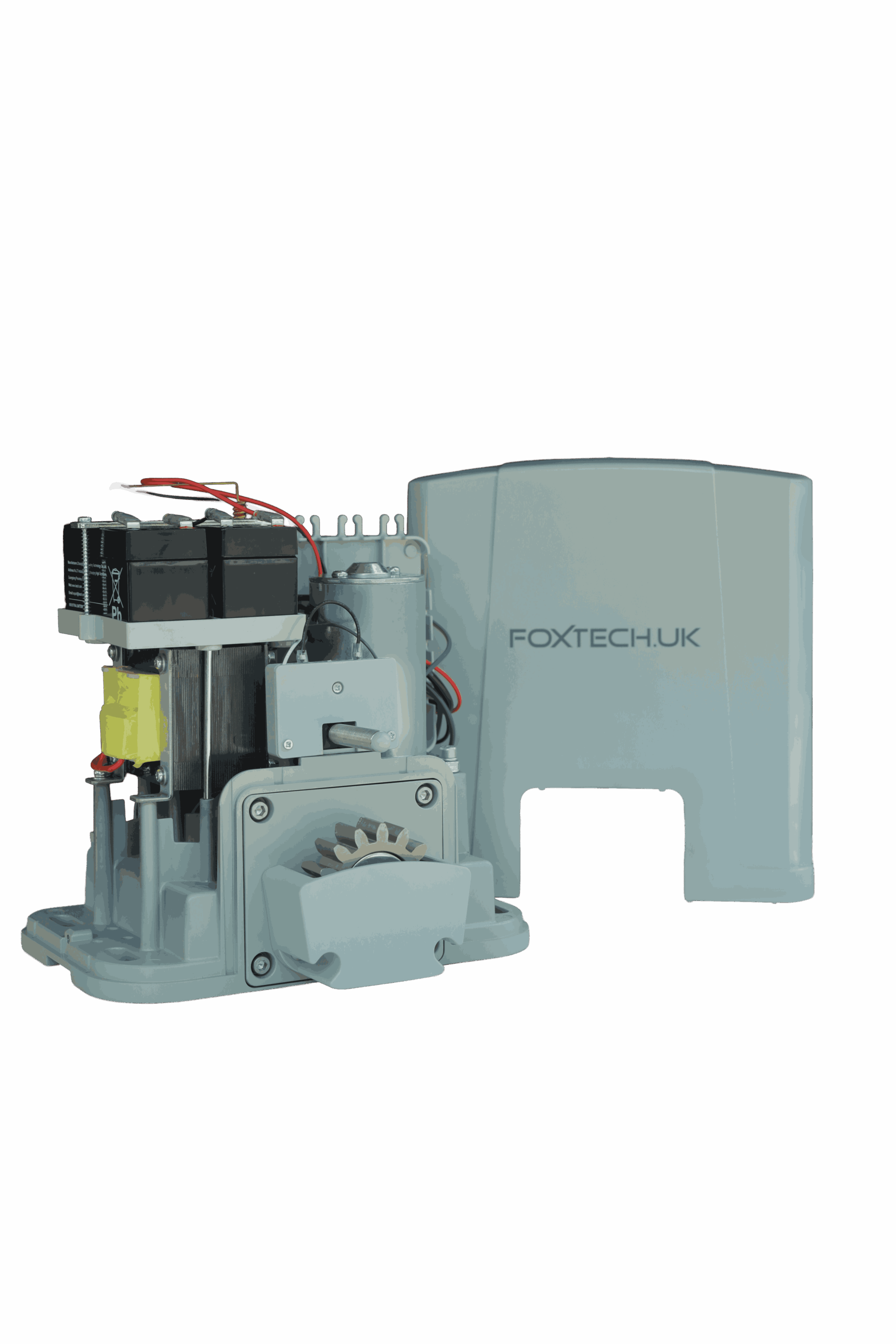

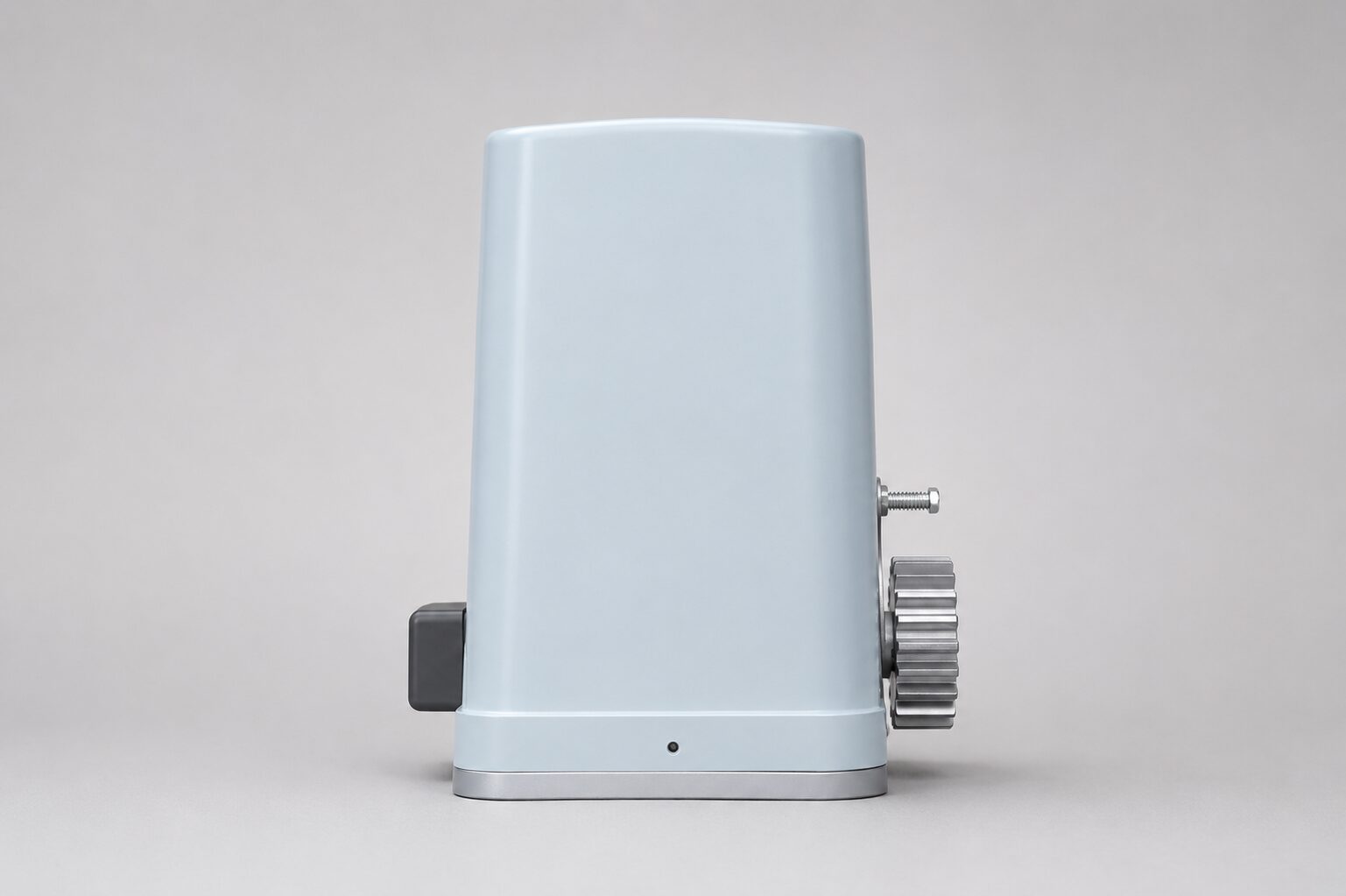

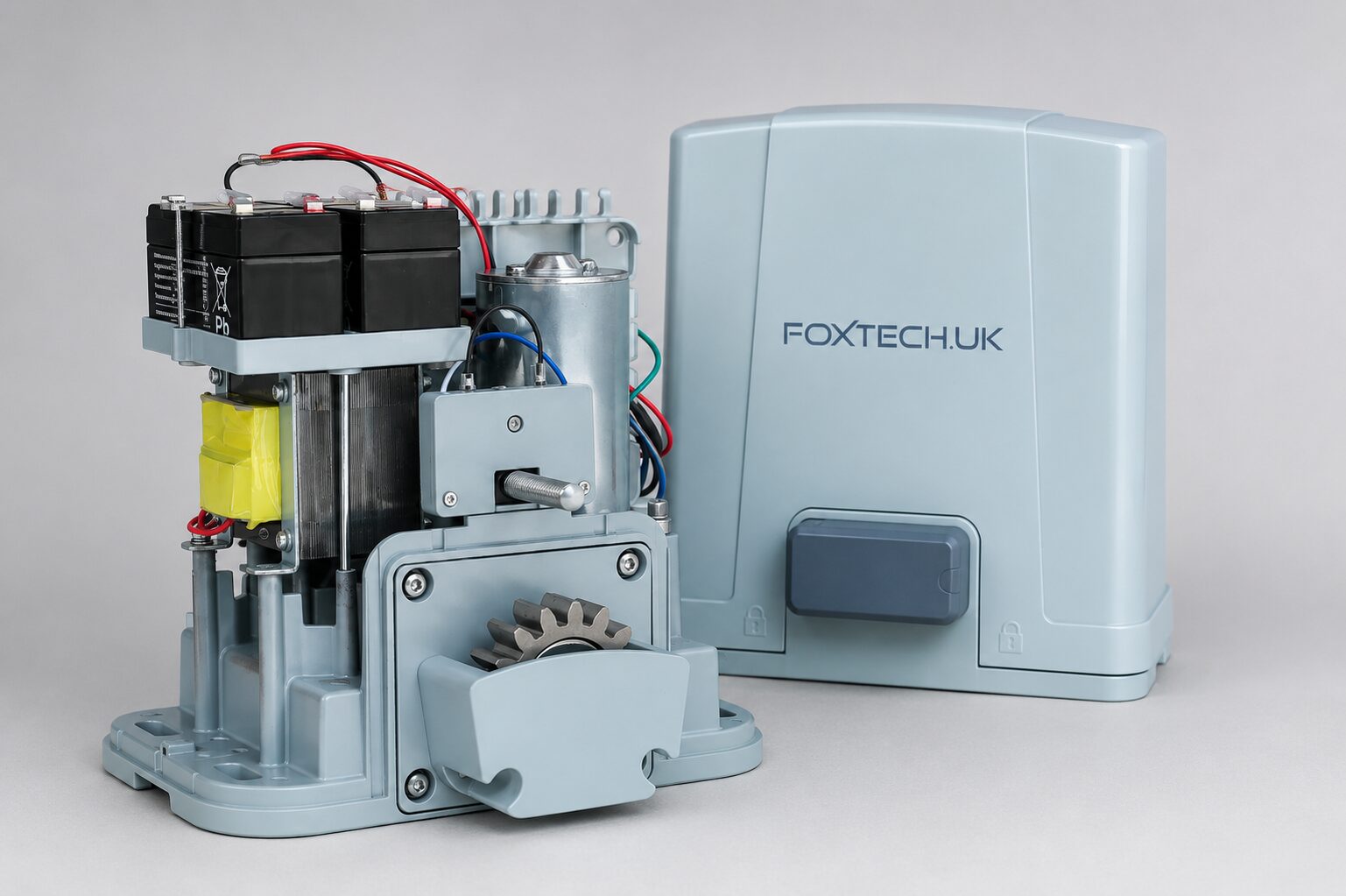

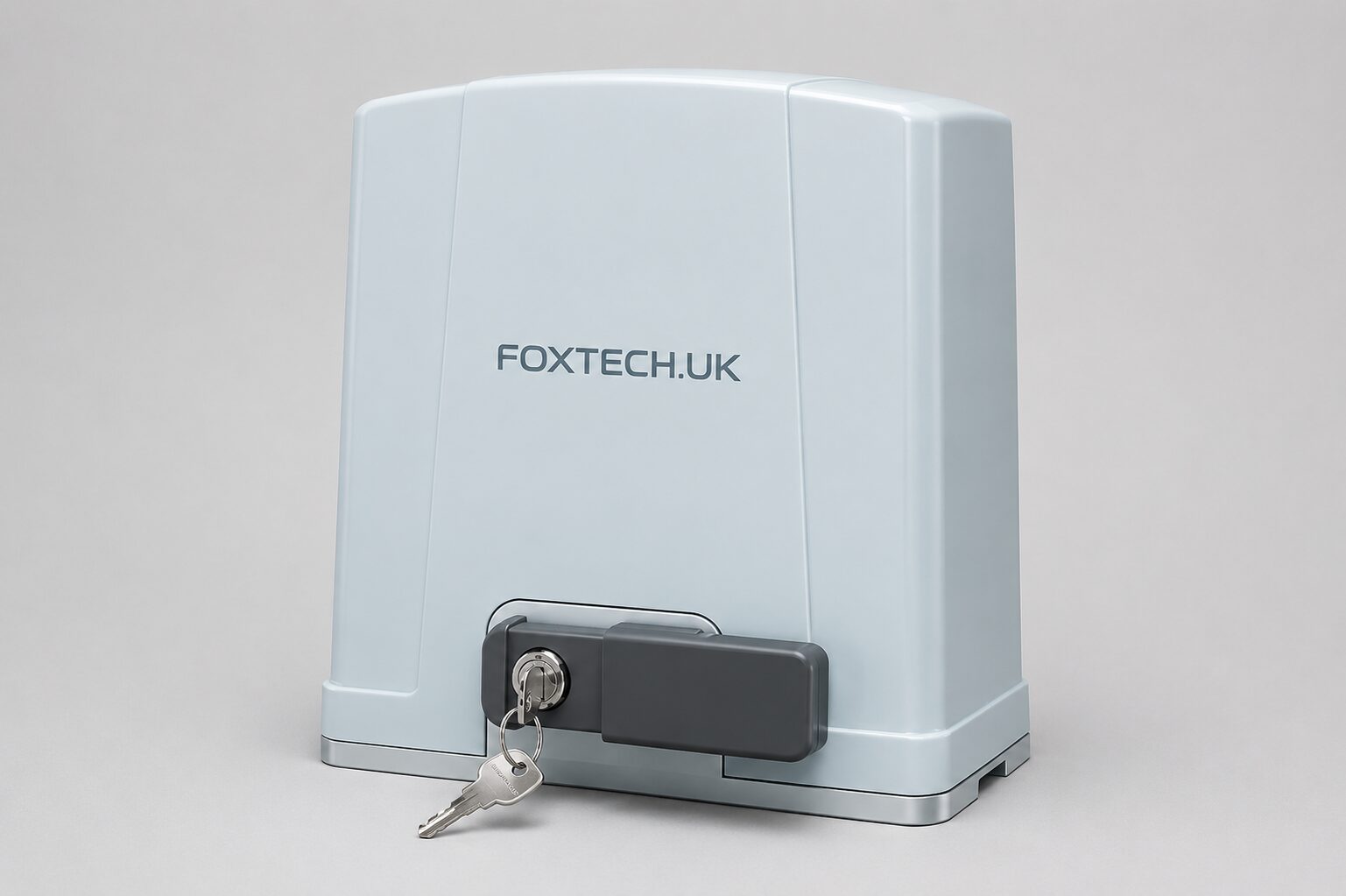

FX 500
Original price was: $100.00.$20.00Current price is: $20.00.
SLIDING GATE OPENERS
- FX 500: maximum gate weight: 500kg/6m.
- 24V DC electro-mechanical gear motors for residential use.
- Worm gear provides durability and silence in motor operation.
- Slowdown during the ends of opening and closing phases.
Technical Data
| Model no | FX500 |
|---|---|
| Gear Type | Worm gear |
| Nominal Thrust | 5000N |
| Power Supply | 24 V dc |
| Engine RPM | 3800RPM |
| Gate Weight | Up to 500 kg |
| Gate Length | 6M |
| Dimension | 250x170x275mm |
| Speed | 27.10 cm/s |
| Absorbed Power | 144W |
| Nominal Input Power | 6A |
| Max.Operating Current | 5.5A for max. 10s |
| Operating Temperature | -20oC~+50oC |
| Material Of Gear | Nylon |

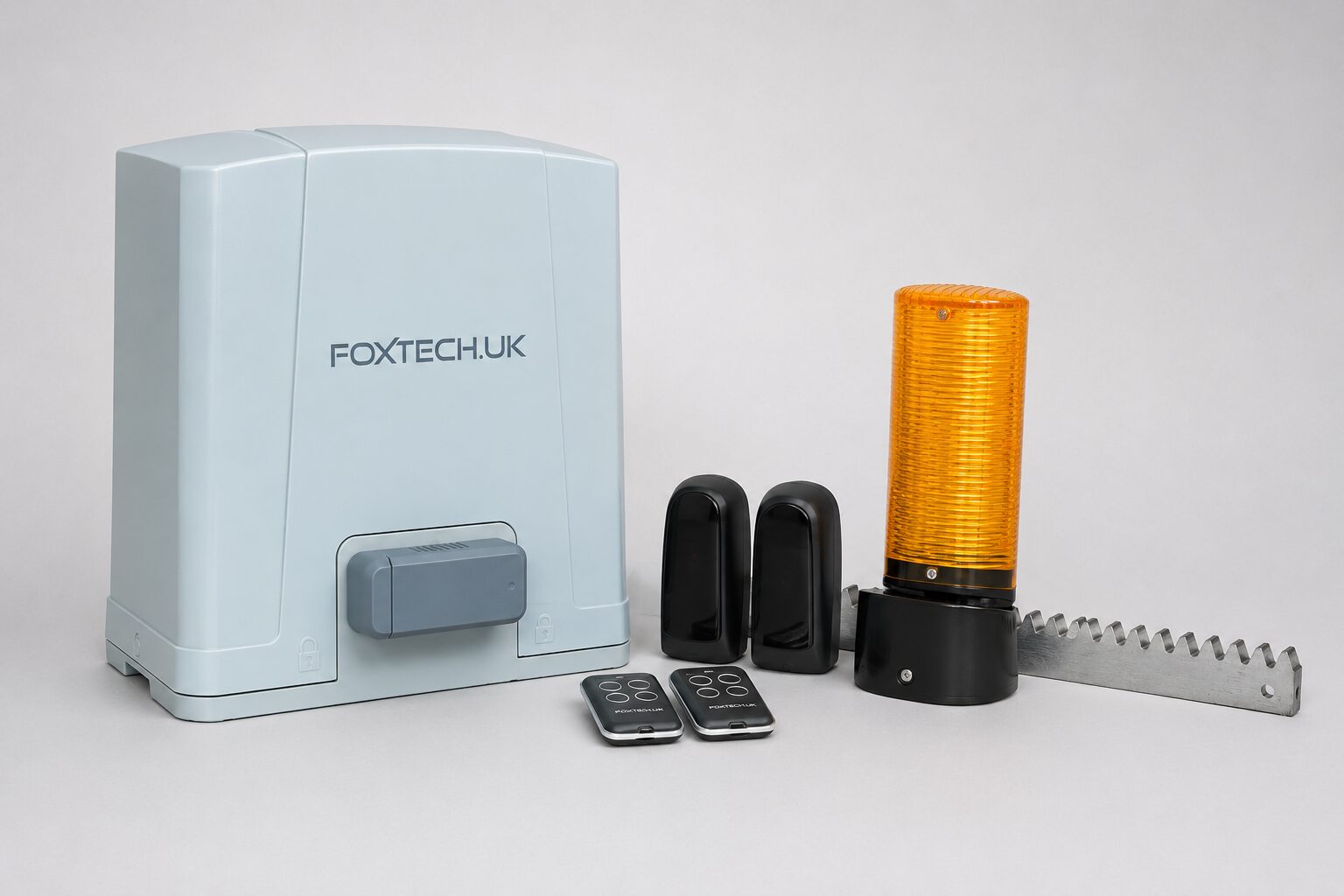

Accessories
-

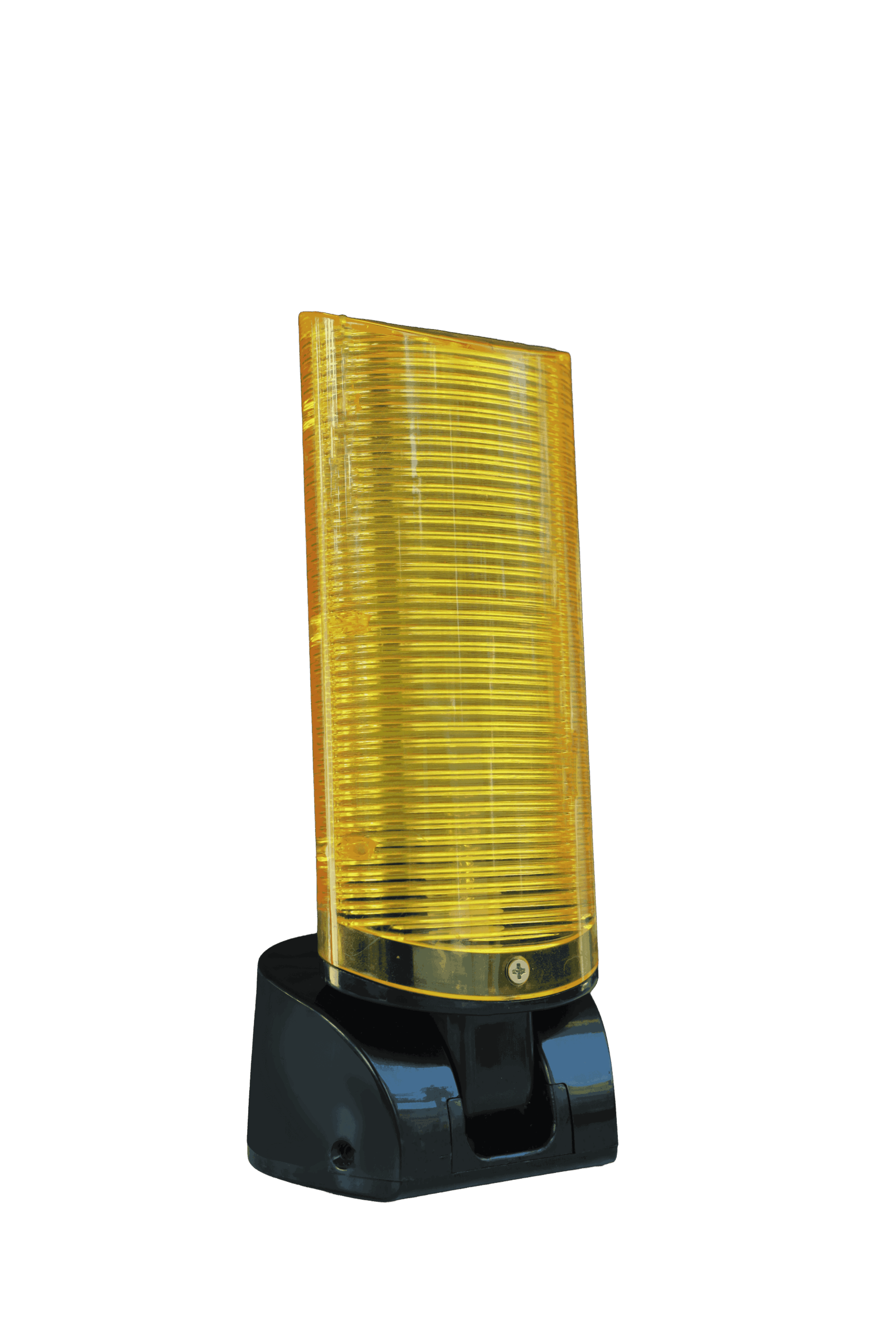

- FLASHING LIGHT
-
- PHOTOCELL
-

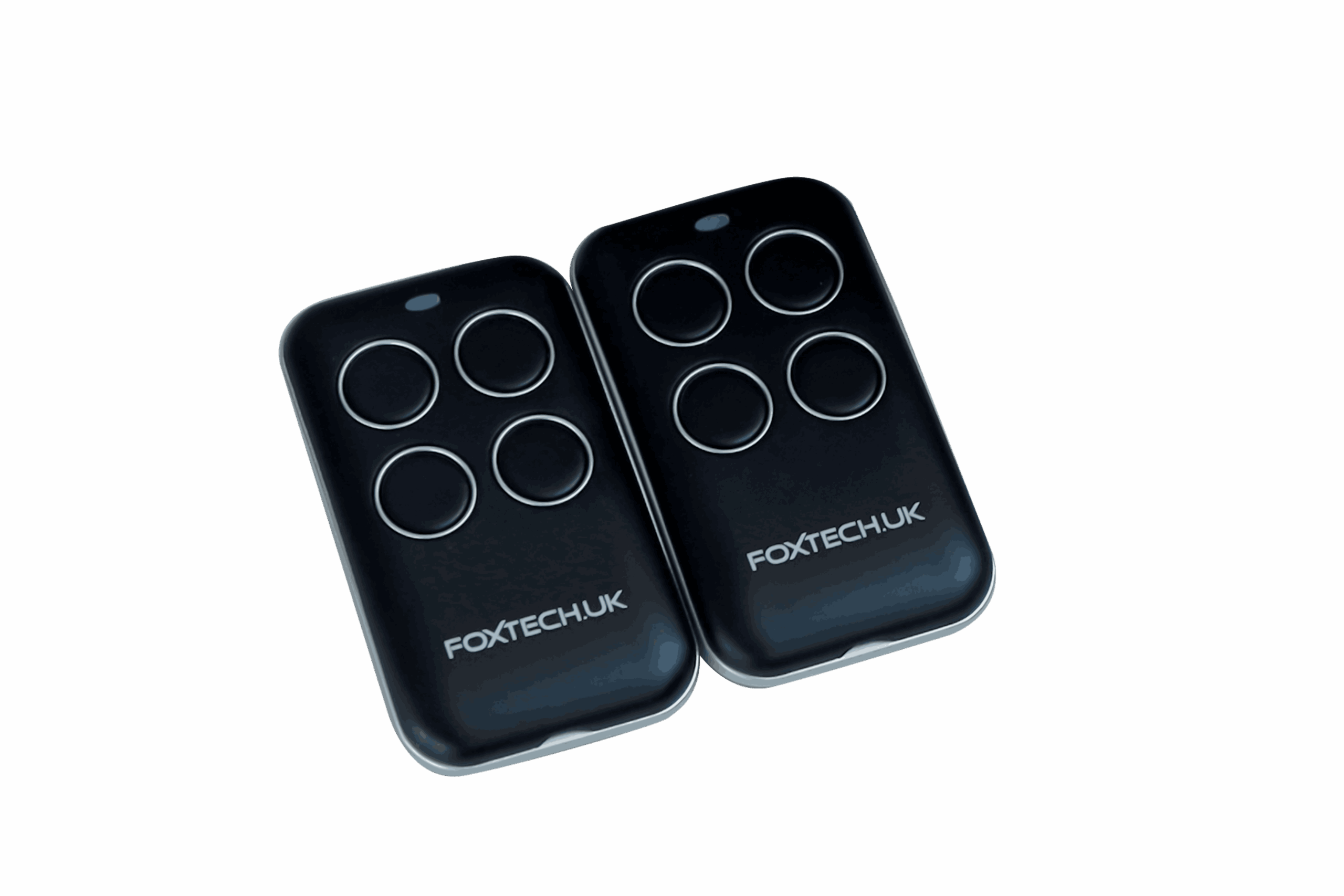

- TRANSMITTER ( Included)
