FX RM180
ROLLER TYPE SWING GATE OPENERS
- Unlimited opening angle : As far as the opener is connected the opening angle can be greater than 1800
- Automatic locking unit: the unit combine the closing and the locking actions optional
- manual operation at power cut the operation mode can be switched to manual with key.
- Suitable for all kinds of gate, such as wood, stainless steel, coper, iron swing gate, etc.
- Convenient installation: Can be mounted to any type of gate regardless of the condition of gate posts and level of rolling surface. The unevenness of road surface up to 90mm, maximum tolerance up to 300mm
- Strong driving force: Maximum bearable weight 1000 kg.
- Battery Backup Optional
Description
ROLLER TYPE SWING GATE OPENERS
- Unlimited opening angle : As far as the opener is connected the opening angle can be greater than 1800
- Automatic locking unit: the unit combine the closing and the locking actions optional
- manual operation at power cut the operation mode can be switched to manual with key.
- Suitable for all kinds of gate, such as wood, stainless steel, coper, iron swing gate, etc.
- Convenient installation: Can be mounted to any type of gate regardless of the
condition of gate posts and level of rolling surface. The unevenness of road surface up
to 90mm, maximum tolerance up to 300mm
- Strong driving force: Maximum bearable weight 1000 kg.
- Battery Backup Optional
Technical Data
| Model no | FX RM180 |
| input | AC 230V |
| Motor Voltage | DC24V |
| Max. Gate Weight | 1000kg |
| Environment Temperature | (°C) -50°C ~ +50°C |
| Remote Distance | 40-50m |
| Push Force | 600N |
| Speed | 10-15m |
| Drop Off Tolerance | 0-300mm |
| Opening Angle | No limitation |
| Lock Way | automatically |
| Weight | 23kg |

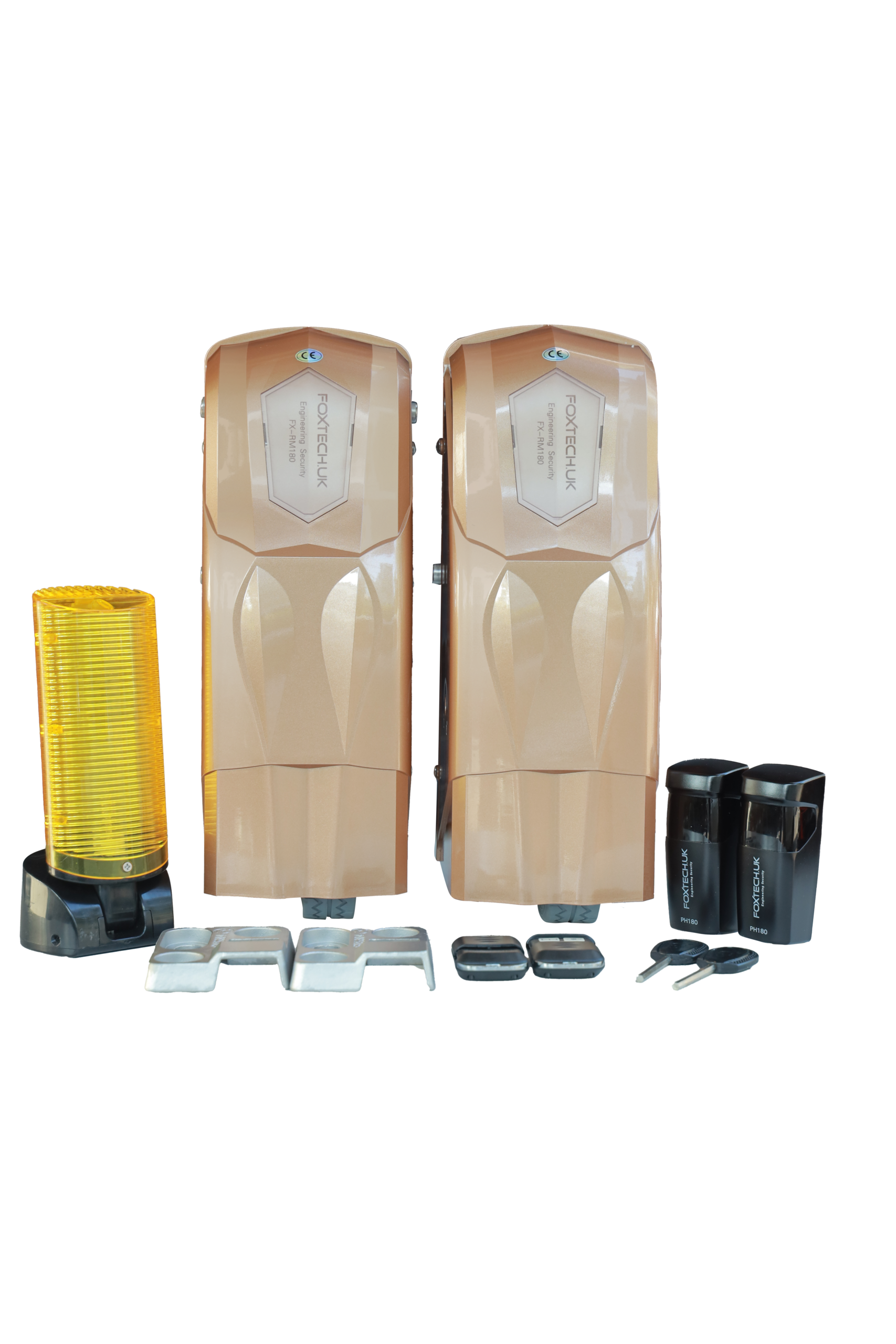

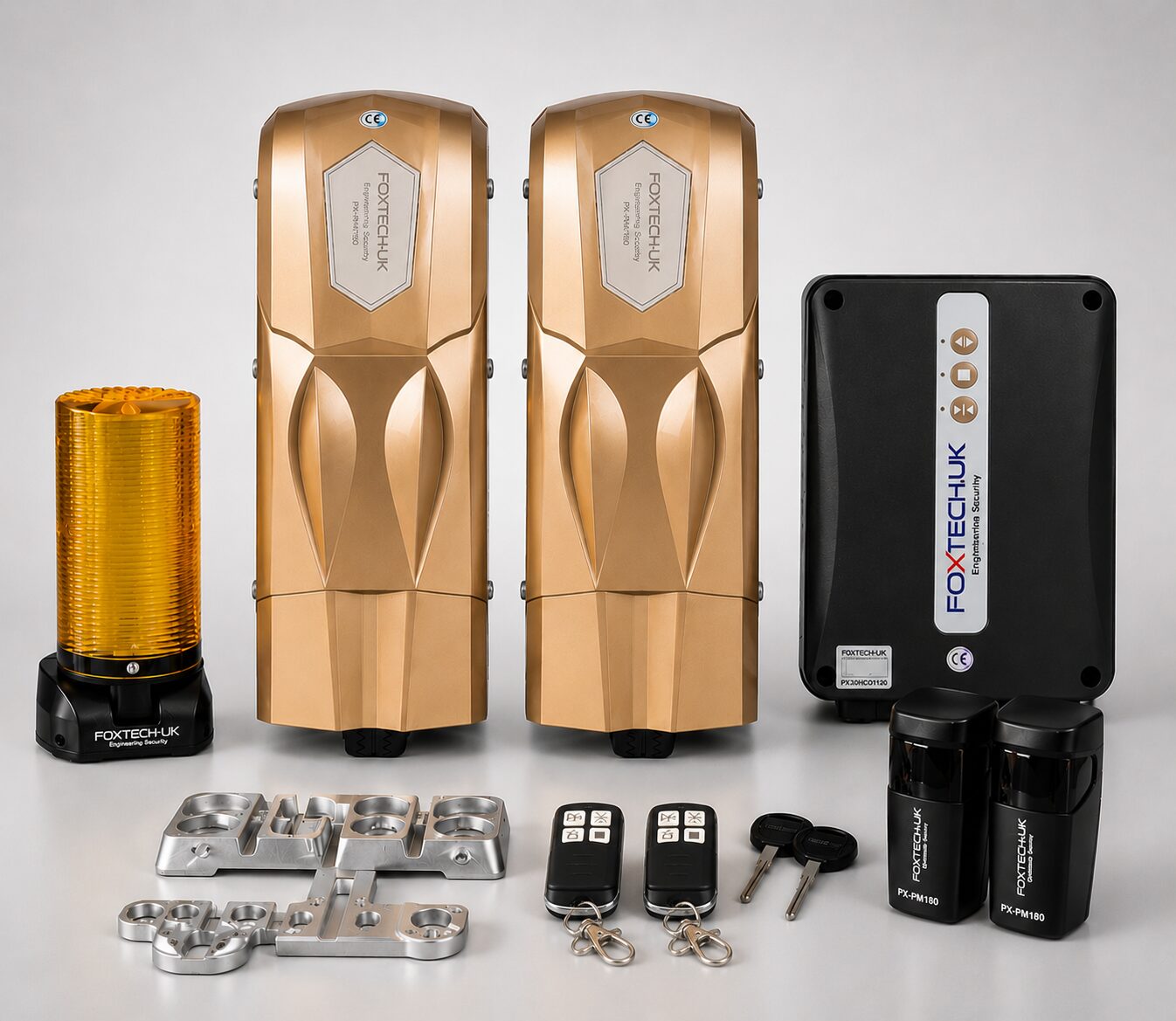

Accessories
-
-
FLASHING LIGHT
-
-
PHOTOCELL
-
-
TRANSMITTER ( Included)
