Technical Data
FX RM180 DC Roller Swing Gate Motor
| Model no | FX RM180 |
| input | AC 230V |
| Motor Voltage | DC24V |
| Max. Gate Weight | 800 kg / leaf |
| Environment Temperature | (°C) -50°C ~ +50°C |
| Remote Distance | 40-50m |
| Push Force | 600N |
| Speed | 10-15m |
| Drop Off Tolerance | 0-300mm |
| Opening Angle | No limitation |
| Lock Way | automatically |
| Weight | 23kg |
FX 500 DC Sliding Gate Motor | Model no | FX500 |
| Gear Type | Worm gear |
| Nominal Thrust | 5000N |
| Power Supply | 24 V dc |
| Engine RPM | 3800RPM |
| Gate Weight | Up to 500 kg |
| Gate Length | 6M |
| Dimension | 250x170x275mm |
| Speed | 27.10 cm/s |
| Absorbed Power | 144W |
| Nominal Input Power | 6A |
| Max.Operating Current | 5.5A for max. 10s |
| Operating Temperature | -20oC~+50oC |
| Material Of Gear | Nylon |
Full Description

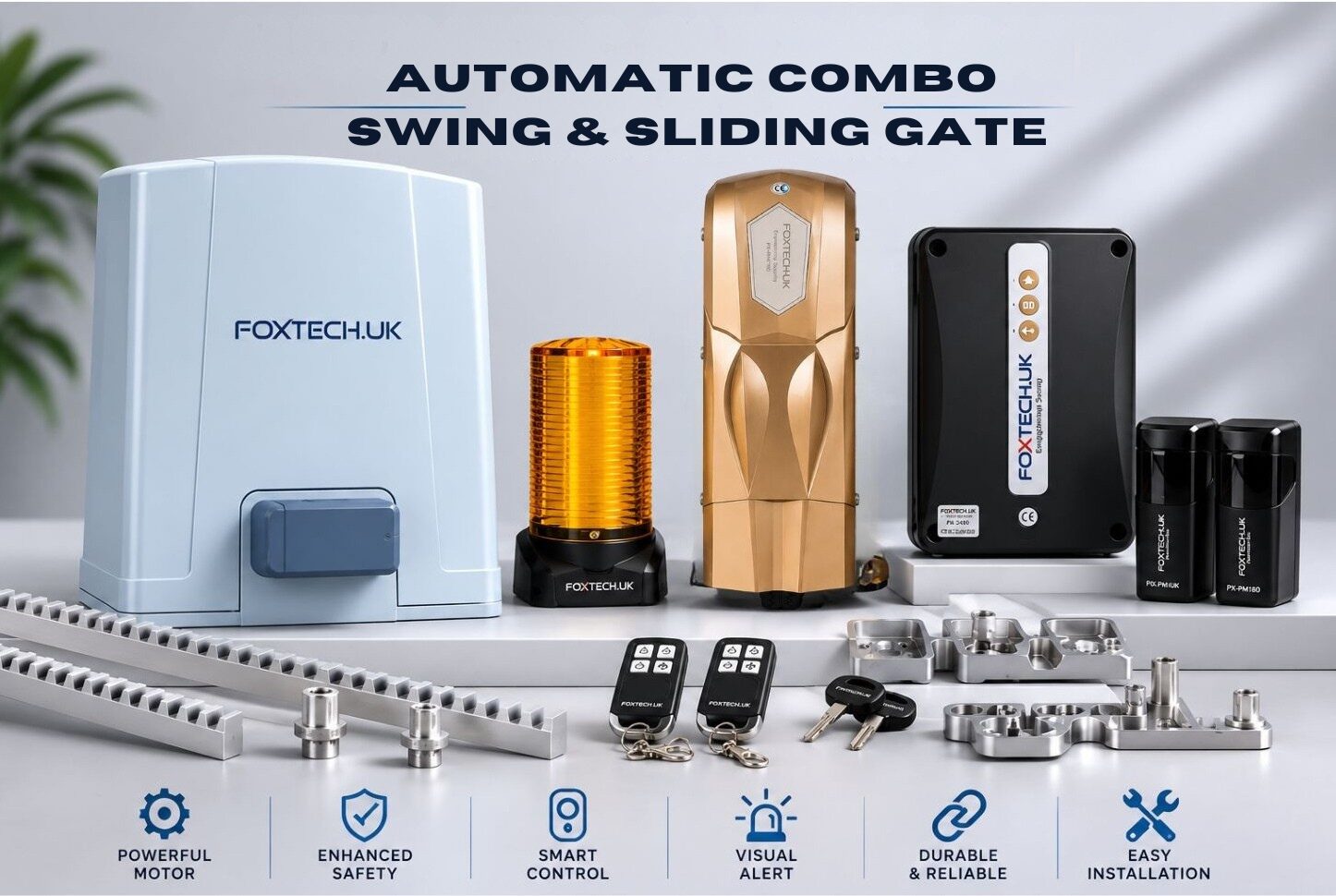

FX COMBO_2 (DC)
RM180 Roller Swing Gate Motor + FX 500 DC Sliding Gate Motor
The FOXTECH.UK FX COMBO_2 (DC) is a premium DC gate automation solution that combines the RM180 Roller Swing Gate Motor with the FX 500 DC Sliding Gate Motor into a single intelligent control system. Designed for residential villas, gated communities, commercial buildings, and industrial entrances, this innovative combo kit provides smooth, reliable, and synchronized operation of both swing and sliding gates using a single remote control.
The intelligent control system allows both gates to open and close simultaneously for maximum entrance width or operate independently through programmable remote buttons, giving users complete flexibility based on their access requirements. An indoor wall switch connected to the control unit can also be configured to control both gates together or each gate individually for added convenience.
Powered by advanced DC motor technology, the FX COMBO_2 delivers smooth, quiet, and energy-efficient performance while ensuring reliable operation under daily use. For enhanced convenience, the system supports optional Wi-Fi or GSM smart control modules, allowing users to open, close, monitor, and manage both gates remotely through a mobile application from anywhere in the world. Combining intelligent automation, advanced safety, and smart connectivity, the FOXTECH FX COMBO_2 (DC) offers a modern, secure, and convenient entrance automation solution for today’s smart properties.
